The product specifications viewer lists product specifications in one or more tabs, depending on the product type.
General (all product types)
- Product number
- Product name
- Article number
- Description
- Harmonized tariff code
- Based on product number
- Product published by
- Product owner (if shared)
Specifications (PCB products)
- Board X dimension (mm)
- Board Y dimension(mm)
- Buildup (stackup) name
- Surface finish
- Solder mask color, top side
- Solder mask color, bottom side
- Legend (silkscreen) color, top side
- Legend (silkscreen) color, bottom side
- Hard gold area, top side (cm²)
- Hard gold area, bottom side (cm²)
- Peel-off mask, top side (true|false)
- Peel-off mask, bottom side (true|false)
- Depth routing from top side (true|false)
- Depth routing from bottom side (true|false)
- [If flex or rigid-flex] Flex stiffener, top side (true|false)
- [If flex or rigid-flex] Flex stiffener, bottom side (true|false)
- [If flex or rigid-flex] Cover layer, top side (true|false|color)
- [If flex or rigid-flex] Cover layer, bottom side (true|false|color)
- [If rigid-flex] Flexible layer count
- [If metal-based board] Thermal conductivity (W(m-K)
- IPC-4761 Via filling type
- Carbon print (true|false)
- Kapton tape (true|false)
- Castellated PTH holes (true|false)
- Scoring (true|false)
- Countersink (true|false)
- Microvias (true|false)
- Plated slots (true|false)
- Beveled edge (true|false)
- Beveled edge angle
- Beveled edge backoff
Specifications (Solder paste stencil products)
- Stencil X dimension (mm)
- Stencil Y dimension (mm)
- Stencil frame type
- Desired reduction of openings (%)
- Stencil thickness
- PCB side(s) (top|bottom|both)
- Stencil opening count
- Stepped thickness count
- Coated (true|false)
- Polish (true|false)
- Protect frame (true|false)
- List of fiducial D-codes
- Fiducials etched on
Specifications (PCBA products)
- Related PCB product number
- Related panel product number
- Related stencil product number
- Related test fixture product number
- Related depanel fixture product number
- Related solder pallet product number
- Top PnP component count
- Bottom PnP component count
- Non-PnP component count
- Total component count
- Unique component count
- BOM data present (true|false)
- PnP data present (true|false)
Specifications (Test fixture products)
- Fixture style
- Fixture X dimension (mm)
- Fixture Y dimension (mm)
Specifications (Depanel fixture and Mechanical part products)
- X dimension (mm)
- Y dimension (mm)
- Z dimension (mm)
- Surface area (cm²)
- Volume (cm³)
- Material
- [If depanel fixture] Anti-static (true|false)
- [If mechanical part] Paint color
Specifications (Solder pallet products)
- Pallet X dimension (mm)
- Pallet Y dimension (mm)
- Pallet material
- Pallet thickness (mm)
- Estimated weight
Specifications (Other product types)
- Items per package
- Weight per package
- [If not connector] Category
- [If connector] Connector style
- Product description
Statistics (PCB products only)
- Plated holes/tools counts
- Unplated holes/tools counts
- Blind top holes/tools counts
- Blind bottom holes/tools counts
- Quantity of buried via depths
- Minimum through hole diameter (mm)
- Minimum blind hole diameter (mm)
- Minimum buried hole diameter (mm)
- Hole density (holes/dm²)
- Rout path count
- Total rout length (mm)
- Minimum track width (mm)
- Minimum clearance (mm)
- Minimum annular ring (mm)
- Minimum hole to copper clearance (mm)
- [If panel] Boards per panel
- [If multi-product panel] Different products per panel
- Board area (dm²)
- Enclosing rectangle area (dm²)
- Estimated weight
- Exposed pad count, top side
- Exposed pad count, bottom side

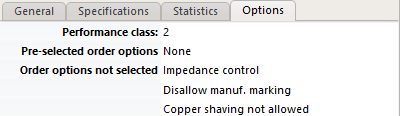

Options (PCB and PCBA products only)
- Performance class
- Impedance control (true|false)
- Function test of all boards (true|false)
- Disallow manufacturer marking (true|false)
- Disallow copper shaving (true|false)
